BadgeTerminals

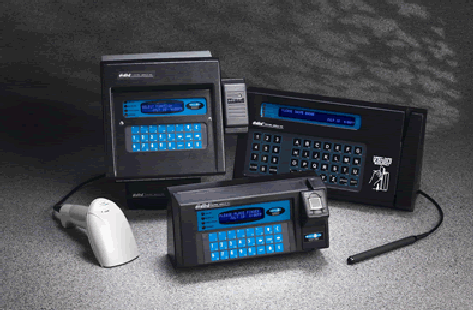

T016 Badge Terminal

Reader Type(s)
 Barcode, MagStripe, Proximity

Communications
Ethernet, RS232, RS485, Modem, WIFI

Functions
 Configurable Functions, External Bell Relay, Lookup Last Punches, Employee Schedule, and Hours Worked, Employee Message, Automatic Daylight Saving Time


Specifications
Display:
4X20 Backlit LCD
Keypad:
Membrane type, dust and splash proof, 24 keys with tactile action
Battery Backup
  • Data/Program Backup
  • Built-In Full Power UPS (Option)
    Memory
    128Kb RAM
    Power Supply
    Input: 110 VAC; Output: 15V DC/1A
    Working temperature
    14°F (-10°C) to 122°F (50°C)
    Humidity
    98% non condensing
    Casing
    ABS
    Dimensions
    10.14 x 5.16 x 4.00 in (WxHxD)
    		•
